HOUSE IN HACKNEY

A playful re-imagining of a Victorian terrace with a large rear extension

E8

YARD_Architects_Graham_Road_Hackney_01

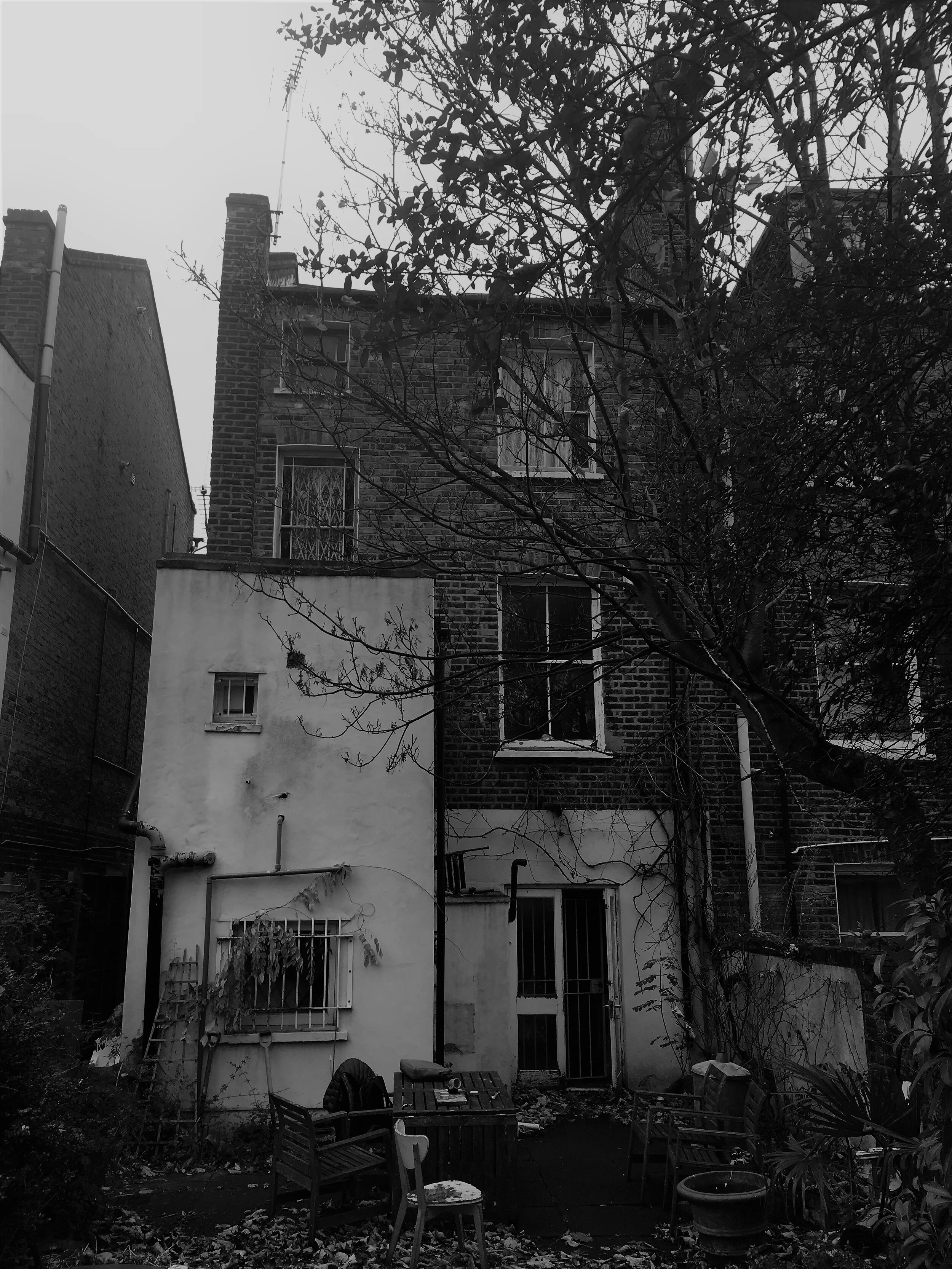

The project started as a problem solving exercise – the owner of the house was very tall and he had never been able to have a shower in the pokey outrigger bathroom, there was simply not enough ceiling height. The lower ground floor  kitchen also suffered from low ceilings and was dark and uninviting. There was very little connection to the garden, surrounded by trees, which felt like a lost opportunity. The whole house needed rethinking.

YARD_Architects_Graham_Road_Hackney_15
YARD_Architects_Graham_Road_Hackney_03

The solution we proposed was to extend into the generous garden at the rear and reconstruct the existing outrigger with an extra storey. We used the outrigger to relocate the staircase to the lower ground floor, moving it from the centre of the house into a double height space in the extension. This gave the house a very generous sense of height and space and allows light to flood into the kitchen and hall from high level windows. These provide glances of the surrounding tress as you descent to the dining room.

YARD_Architects_Graham_Road_Hackney_06
YARD_Architects_Graham_Road_Hackney_04

The extension allows the kitchen and dining room to push further into the garden, making the most of the views and light. A strip rooflight over the kitchen wall units brings light deep into the space and washes the kitchen with sunlight during the day. Behind the kitchen, where there was no access to natural light, we tucked a utility room and shower room, with a second sitting room at the front of the house. The extension has a green sedum roof to ensure it feels like part of the garden when seen from the upper floors of the house. We used a pale white and yellow brick to complement the colour of the London stock brickwork, but maintain a contemporary aesthetic. Oak windows and sliding door add a warmth to the extension and tie in with the materials we used internally.

YARD_Architects_Graham_Road_Hackney_14_GIF
YARD_Architects_Graham_Road_Hackney_02
YARD_Architects_Graham_Road_Hackney_05

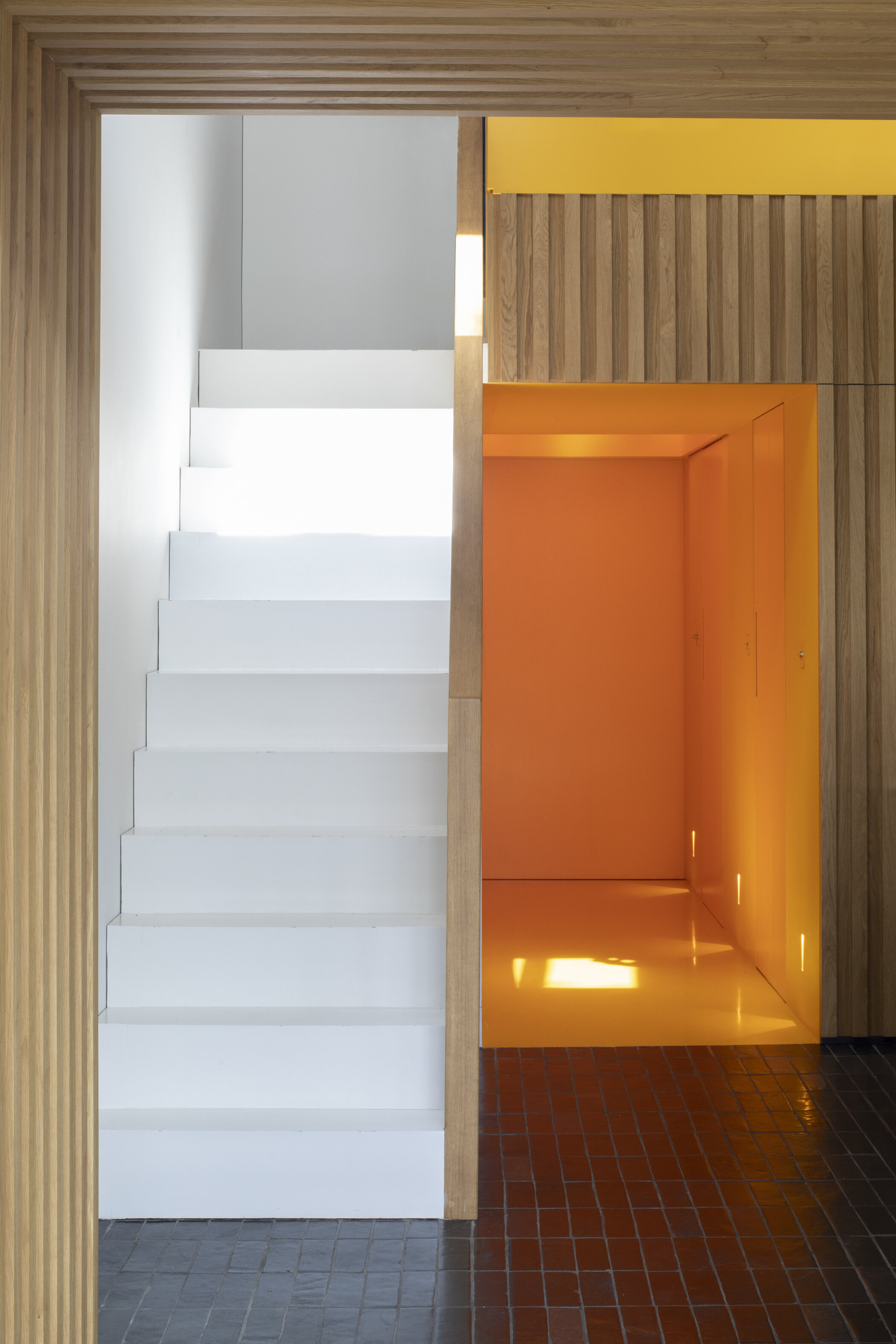

Internally there is a palette of bold colours to define the living spaces, including an entirely yellow corridor the client has named ‘The Yolky Way’ leading from the kitchen to the front reception room, complete with hidden yellow doors. These are offset against more natural materials such as the oak batten cladding, which define the dining space and also line the back wall of the kitchen concealing the fridge door and larder units. A bespoke terrazzo counter unites the colours of the floor, oak cladding and cupboard doors and the tiled floor leads seamlessly to the outside patio, leading the eye back into the garden.

YARD_Architects_Graham_Road_Hackney_08
YARD_Architects_Graham_Road_Hackney_07
YARD_Architects_Graham_Road_Hackney_16

COMPLETED LOWER GROUND FLOOR PLAN

YARD_Architects_Graham_Road_Hackney_17

COMPLETED UPPER GROUND FLOOR PLAN

YARD_Architects_Graham_Road_Hackney_12
YARD_Architects_Graham_Road_Hackney_09

A new bathroom with a generous ceiling height was placed in the reconstructed outrigger, with triple aspect windows, including a picture window at the end of the bath framing views of the trees in the garden.

YARD_Architects_Graham_Road_Hackney_10
YARD_Architects_Graham_Road_Hackney_11

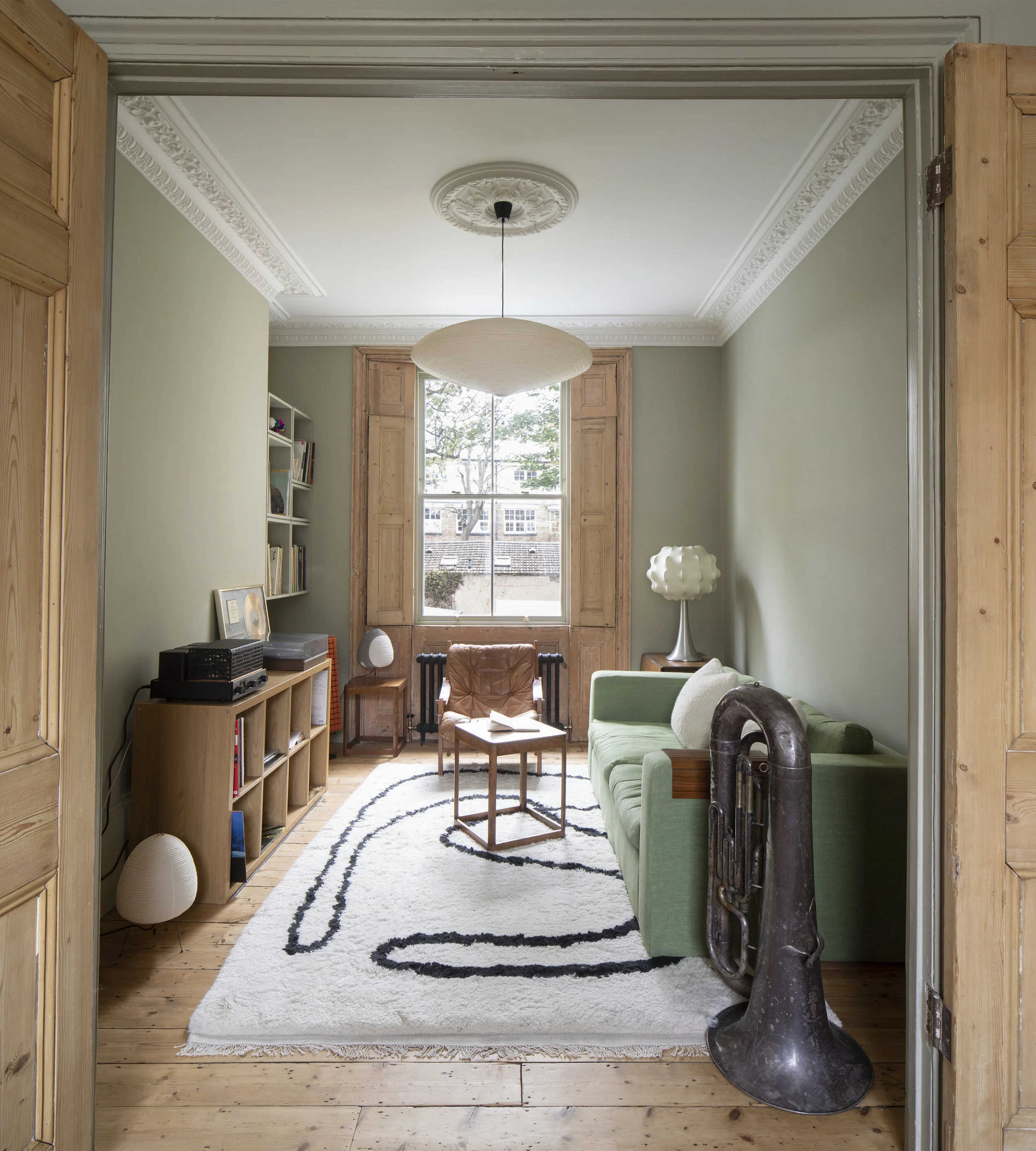

Upstairs we kept the traditional Victorian layout, refurbished the windows and shutters, reinstating cornice and ceiling roses to the principal rooms. At every point in the project the ergonomics of the house were considered, tall doors, very high kitchen worktops and always maximising ceiling heights, ensuring the house was more suited to its tall owner.

YARD_Architects_Graham_Road_Hackney_13
YARD_Architects_Graham_Road_Hackney_15

Photographs by Richard Chivers
